Reliable Analog Walkie Talkie GT-A29
KEY FEATURES
- Frequency:UHF400-470 MHZ(RX/TX)
- Up to 16 Channels
- Chinese/English Language
- 50 Groups CTCSS,
- 105 Groups of standard DCS
- Time-out timer(TOT)
- Broad band/Narrow band
- Battery saving function
- Busy Channel Lockout (BCL)
- Low Battery Voltage Warning
- Programmable by PC
GOING Tech GT-A29 Analog Two Way Radio is designed for durability and ease of use, these radios are ideal for industries such as hotel, shop, security, and hospitality. The above specifications/technical instructions are for referenceonly because of the continuous improvement of the technology. Pleaserefer to the physical object.
Specifications
| Model No. | GT-A29 |
| Frequency Range | UHF 400-470MHz |
| Memory Channels | 16 |
| Operation Voltage | 3.7V DC |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20℃~+50℃ |
| Mode of Operation | Simplex |
| Antenna Impedance | 50Ω |
| Application | Analog Walkie Talkie |
| Dimension (L*W*H) | 110*60*35mm |
| Output Power | <5W |
| Modulation Type（W/N） | 16KФF3E/11KФF3E |
| Maximum deviation(W/N) | ≤5KHz/≤2.5KHz |
| Spurious emission | ≤7.5μW |
| Adjacent Channel Power(W/N) | ≤-65dB /≤-60dB |
| SNR(W/N) | ≥-45dB/≥-40dB |
| QT/DQT (W/N) | 0.7+0.1KHz/0.4+0.1KHz |
| Modulation sensitivity | 8-12mV |
| Transmission current | ≤ 1200mA |
| Receive Sensitivity | -122dBm(12dB SINAD) |
| Audio Power | 0.4W |
| Audio Distortion | ≤10% |
| Intermediation(W/N) | ≥65dB/≥60dB |
| Adjacent channel selectivity(W/N) | ≥65dB/≥60dB |
| Clutter suppression | ≥ 65dB |
| Receiver current | ≤ 380mA |

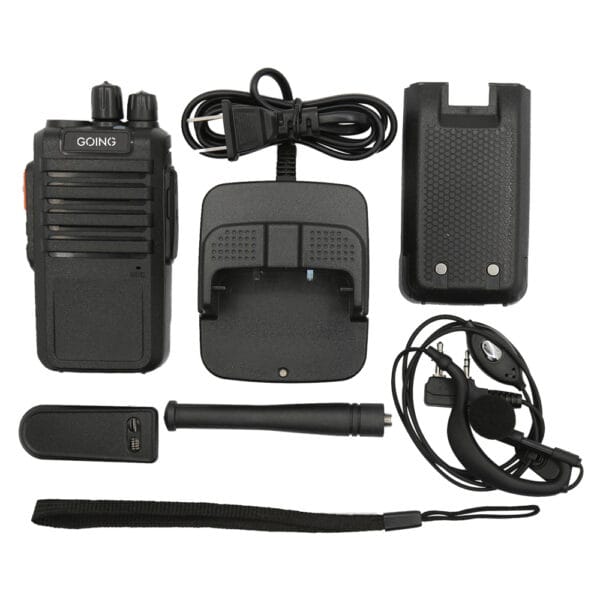

Standard Accessories
