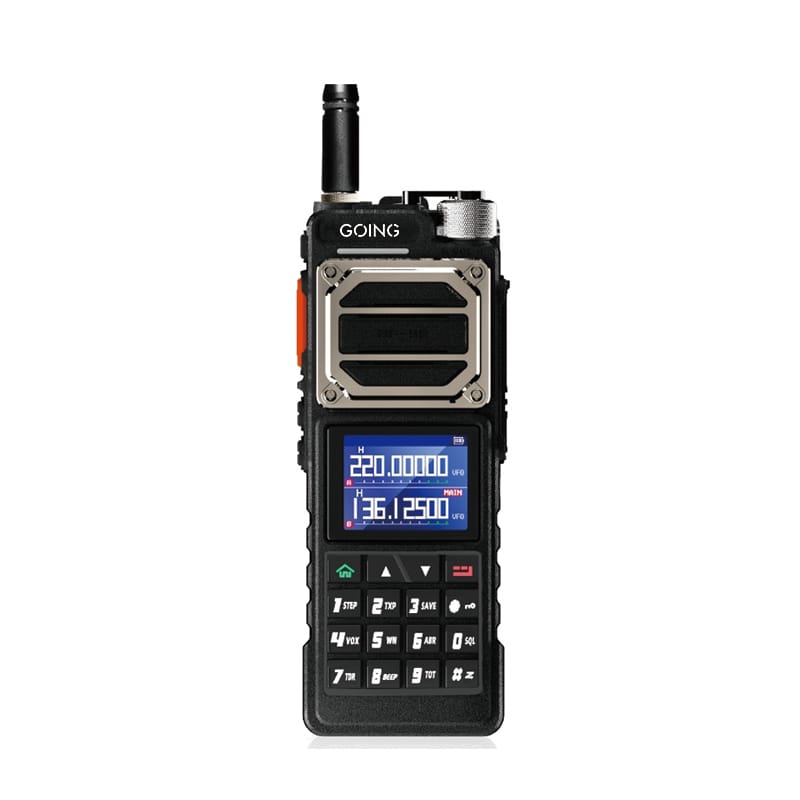

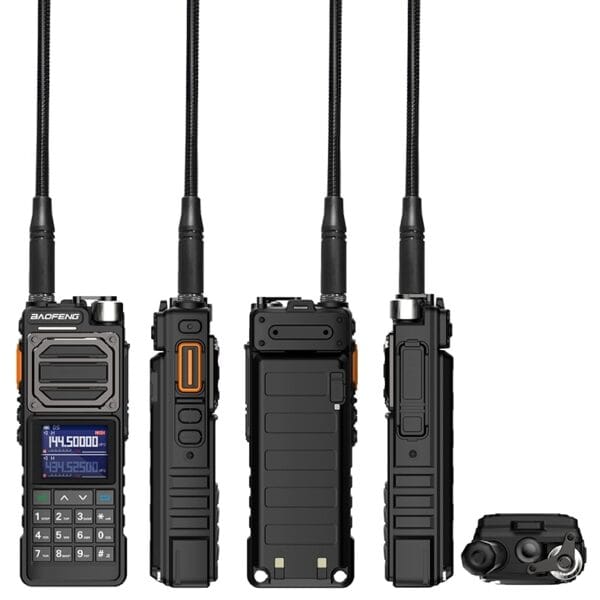

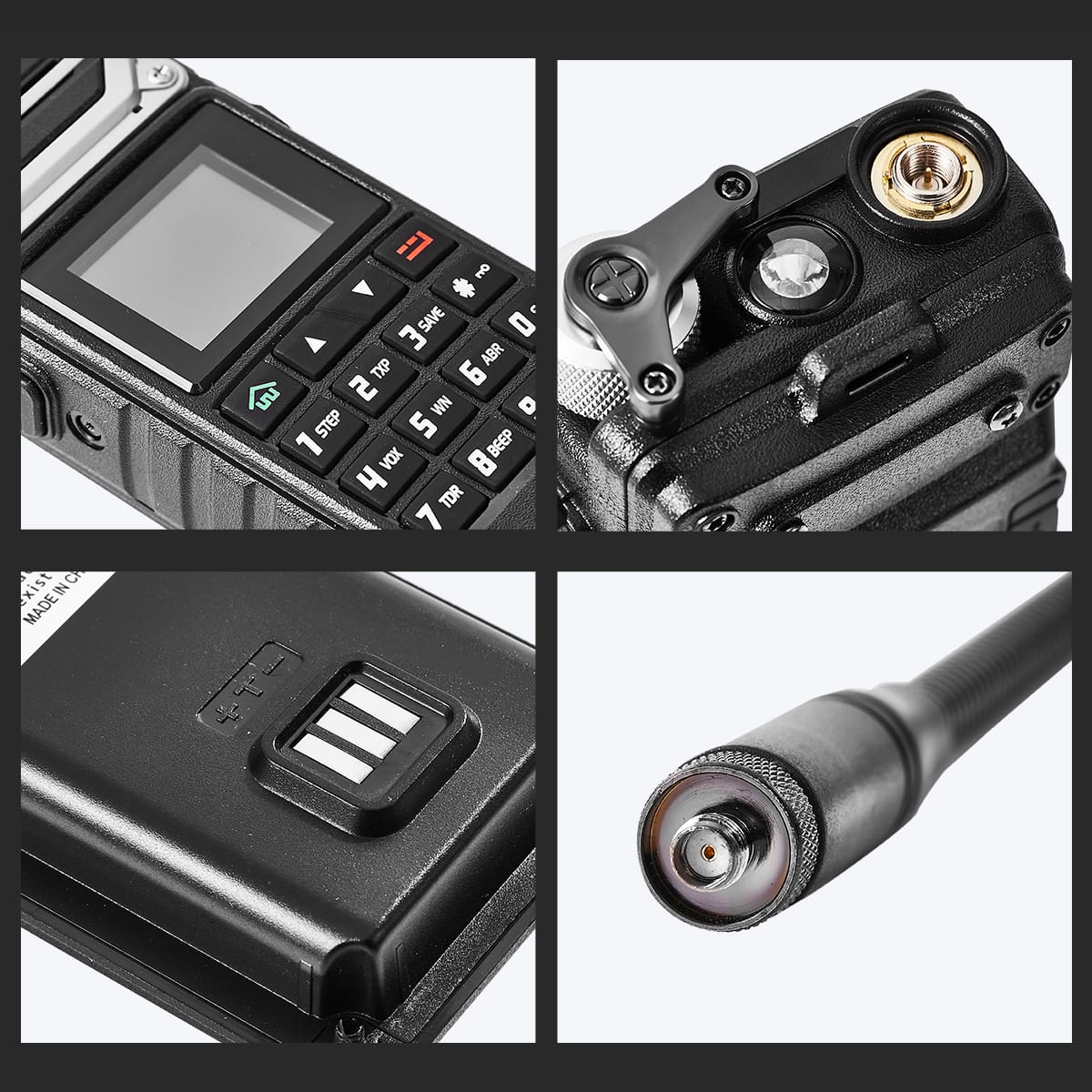

Reliable Analog Walkie Talkie GT-S11
KEY FEATURES
- Dual-band handheld transceiver,with display function menu on the display”LCD”
- High power
- Cross band reception/transmission
- A variety of display channel number,frequencychannel frequency,channel name, etc.
- Tone end of transmission
- Function”VOX”(voice operated transmission)
- Display illumination and programmable keyboard.
- Built-in LED flashlight
- Chinese /English Switchover
GOING Tech GT-S11 Analog Two Way Radio is designed for durability and ease of use, these radios are ideal for industries such as construction, security, and hospitality. The above specifications/technical instructions are for referenceonly because of the continuous improvement of the technology. Pleaserefer to the physical object.
Specifications
| Model No. | GT-S11 |
| Frequency Range | 136-174MHz(Rx),220-260MHz(Rx), 400-520 MHz(Rx),FM65-108MHz(Rx) |
| Memory Channels | 999 |
| Operation Voltage | 7.4V DC |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20℃~+60℃ |
| Mode of Operation | Simplex or semi-duplex. |
| Antenna Impedance | 50Ω |
| Application | Analog Walkie Talkie |
| Dimension (L*W*H) | |
| Weight |
| Output Power | 1W |
| Modulation Type（W/N） | 16KФF3E/11KФF3E |
| Maximum deviation(W/N) | ≤5KHz/≤2.5KHz |
| Spurious emission | ≤-60 dB. |
| Adjacent Channel Power(W/N) | ≤-65dB /≤-60dB |
| SNR(W/N) | ≥-45dB/≥-40dB |
| QT/DQT (W/N) | 0.7+0.1KHz/0.4+0.1KHz |
| Modulation sensitivity | 8-12mV |
| Transmission current | ≤2800mA |
| Receive Sensitivity | 0.25μV(12dB SINAD) |
| Audio Power | 5W/1W |
| Audio Distortion | ≤10% |
| Intermediation(W/N) | ≥65dB/≥60dB |
| Adjacent channel selectivity(W/N) | ≥65dB/≥60dB |
| Clutter suppression | ≥ 65dB |
| Receiver current | ≤ 380mA |

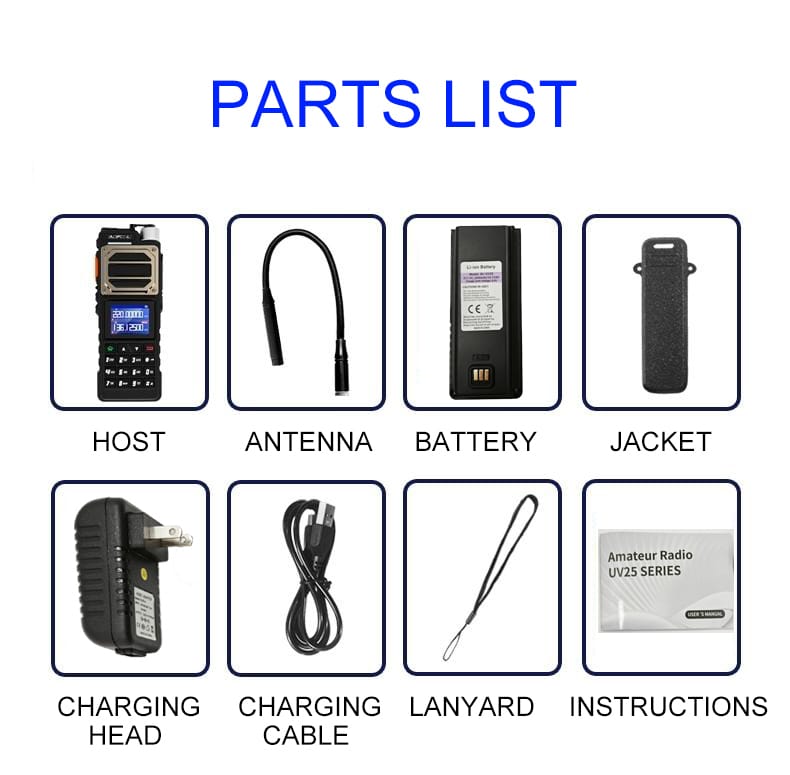

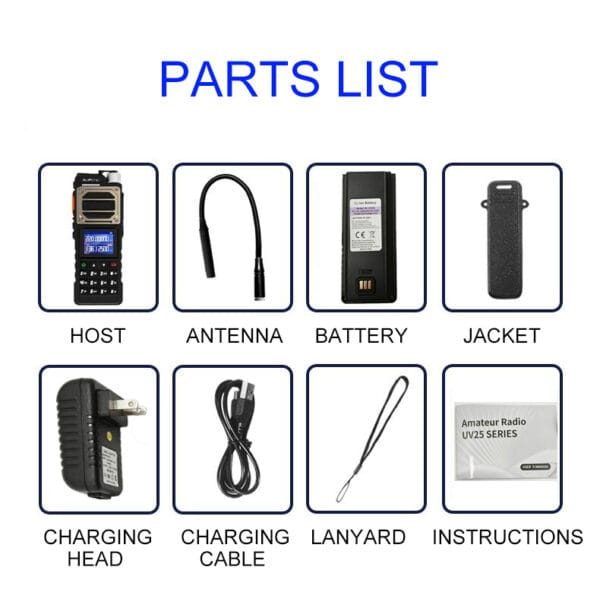

Standard Accessories
