Reliable Analog Walkie Talkie GT-S5
KEY FEATURES
- Dual-band handheld transceiver,with display function menu on the display”LCD”
- High power
- Cross band reception/transmission
- A variety of display channel number,frequencychannel frequency,channel name, etc.
- Tone end of transmission
- Function”VOX”(voice operated transmission)
- Display illumination and programmable keyboard.
- Built-in LED flashlight
- Chinese /English Switchover
GOING Tech GT-S5 Analog Two Way Radio is designed for durability and ease of use, these radios are ideal for industries such as construction, security, and hospitality. The above specifications/technical instructions are for referenceonly because of the continuous improvement of the technology. Pleaserefer to the physical object.
Specifications
| Model No. | GT-S5 |
| Frequency Range | 144-146 & 430-440MHz (EU CE standard); 144-148&430-450MHz (Canadian lc standard) |
| Memory Channels | 128 |
| Operation Voltage | DC 7.4 V +10% |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20℃~+50℃ |
| Mode of Operation | Simplex |
| Antenna Impedance | 50Ω |
| Application | Analog Walkie Talkie |
| Dimension (L*W*H) | |
| Weight |
| Output Power | (VHF max)5W (UHF max)4W |
| Modulation Type | 11KФF3E@12.5KHz |
| Maximum deviation | |
| Spurious emission | ≤7.5μW |
| Adjacent Channel Power | 60dB @ 12.5KHz |
| SNR | |
| QT/DQT | |
| Modulation sensitivity | 8-12mV |
| Transmission current | ≤ 1600mA |
| Receive Sensitivity | 0.25μV(12dB SINAD) |
| Audio Power | 1W |
| Audio Distortion | ≤5% |
| Intermediation | ≥55dB@12.5KHz |
| Adjacent channel selectivity | ≥55dB@12.5KHz |
| Clutter suppression | ≤-57dB@12.5KHz |
| Receiver current | ≤ 380mA |

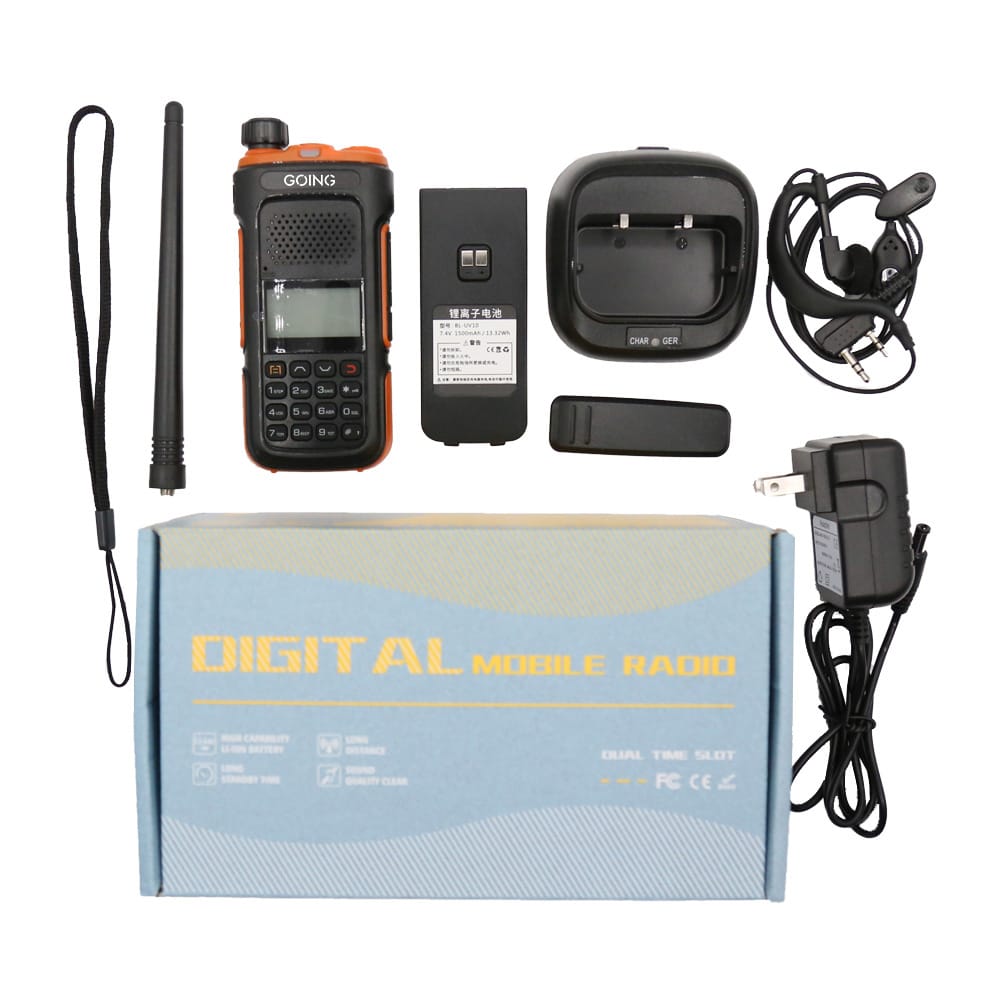

Standard Accessories
