Reliable Digital Two Way Radio GT-D25
KEY FEATURES
- Main Features:
- 50 CTCSS/105 CDCSS
- VOX Function
- Voice Prompt
- PC Programming
- Emergency Alarm
- Intelligent Charging
- Battery Save
- Low Voltage Alert
- Time-out Timer
- Torch Light
- Specification
- General
- Operation voltage DC3.7V(li-ion Battery)
- Frequency stability ±2.5ppm
- Operation temperature -20℃~+50℃
- Mode of operation Simplex
- Antenna impedance 50Ω
- Ground connection Negative electrode
- Volume 58×28.5x172MM
- Transmitter
- RF Power:W
- Modulation FM
- Max frequency deviation ≤±5KHz
- Stray Radiation ≤-60dB
- Transmit current ≤1000mA
- Pre-emphasis Character 6dB/per octave
- Receiver
- Sensitivity <0.16uv (12dB SINAD)
- Squelch Sensitivity < 0.2uv
- Audio power ≥380mW
- Audio distortion <10%
- Intermodulation ≥65dB
- Receive current ≤380mA
GOING Tech GT-D25 Digital Two Way Radio is designed for durability and ease of use, these radios are ideal for industries such as construction, security, and hospitality. Whether you’re coordinating a large workforce or managing day-to-day operations, our digital radios offer an affordable solution to keep your communication seamless and efficient.
Specifications
| Model No. | GT-D25 |
| Frequency Range | VHF: 136-174MHZ UHF 400-470MHz |
| Channel Capacity | 1024 |
| Supply Voltage | 7.4V DC |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20℃ ~ +50℃ |
| Dimension (L*W*H) | |
| Weight (with Batteries) | |
| Application | Digital Two Way Radio |
| Output Power | High:5W/Low:1W |
| Max. Frequency Deviation | ≤±5 kHz/≤±2.5 kHz (W/N). |
| Adjacent Channel Power | ≤-65dB,≤-60dB (W/N). |
| Transmit Audio Distortion | <5% |
| Signal-to-noise(wide/narrow) | ≥45dB@25KHz ≥40dB@12.5KHz |
| Adjacent Channel power | ≤-65dB/≤-60dB |
| Audio power | 1W |
| Receive Sensitivity | Analog：-122dBm (12dB SINAD) Digital：-120dBm(BER≤5%) |
| Audio distortion | <10% |
| Signal imitation | ≥70dB |
| Intermediation (Wide/ narrow) | ≥62dB/≥58dB |
| Adjacent channel selectivity(Wide/ narrow) | ≥65dB/≥60dB |
| Receive Current | ≤380mA |

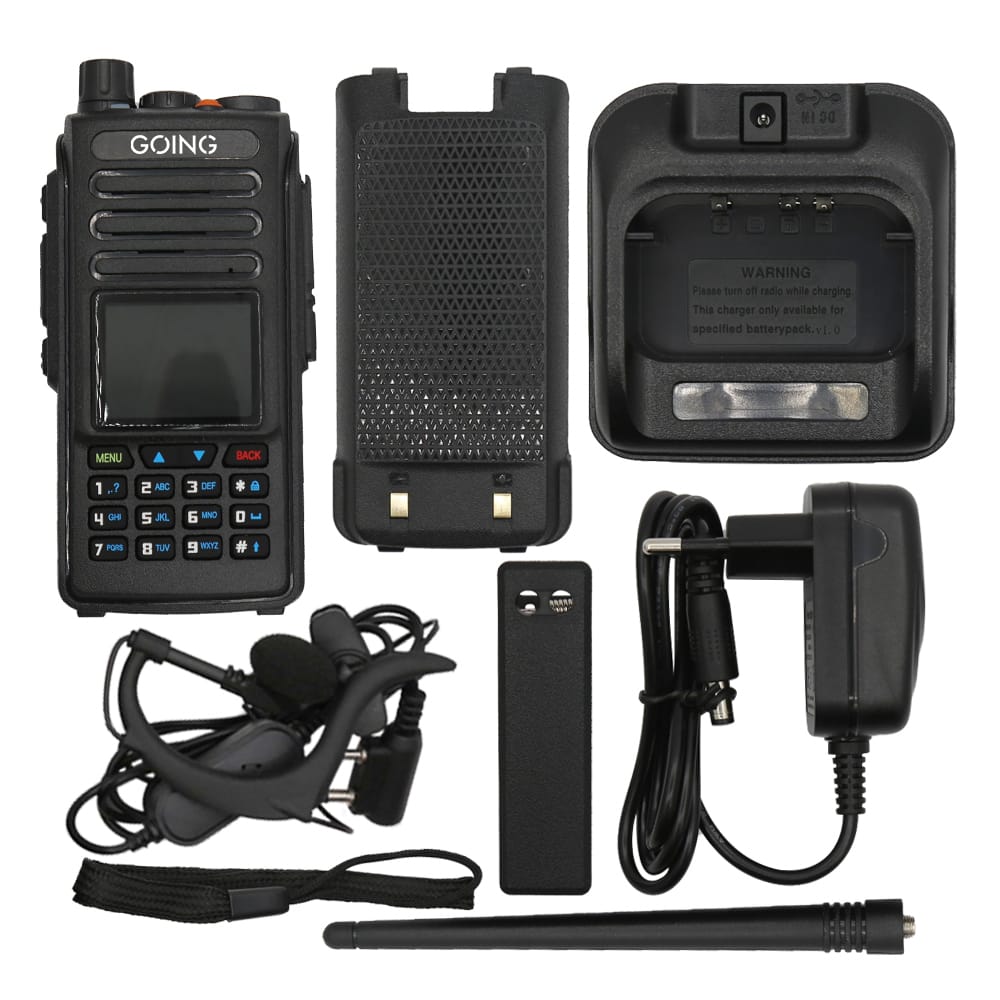

Standard Accessories
